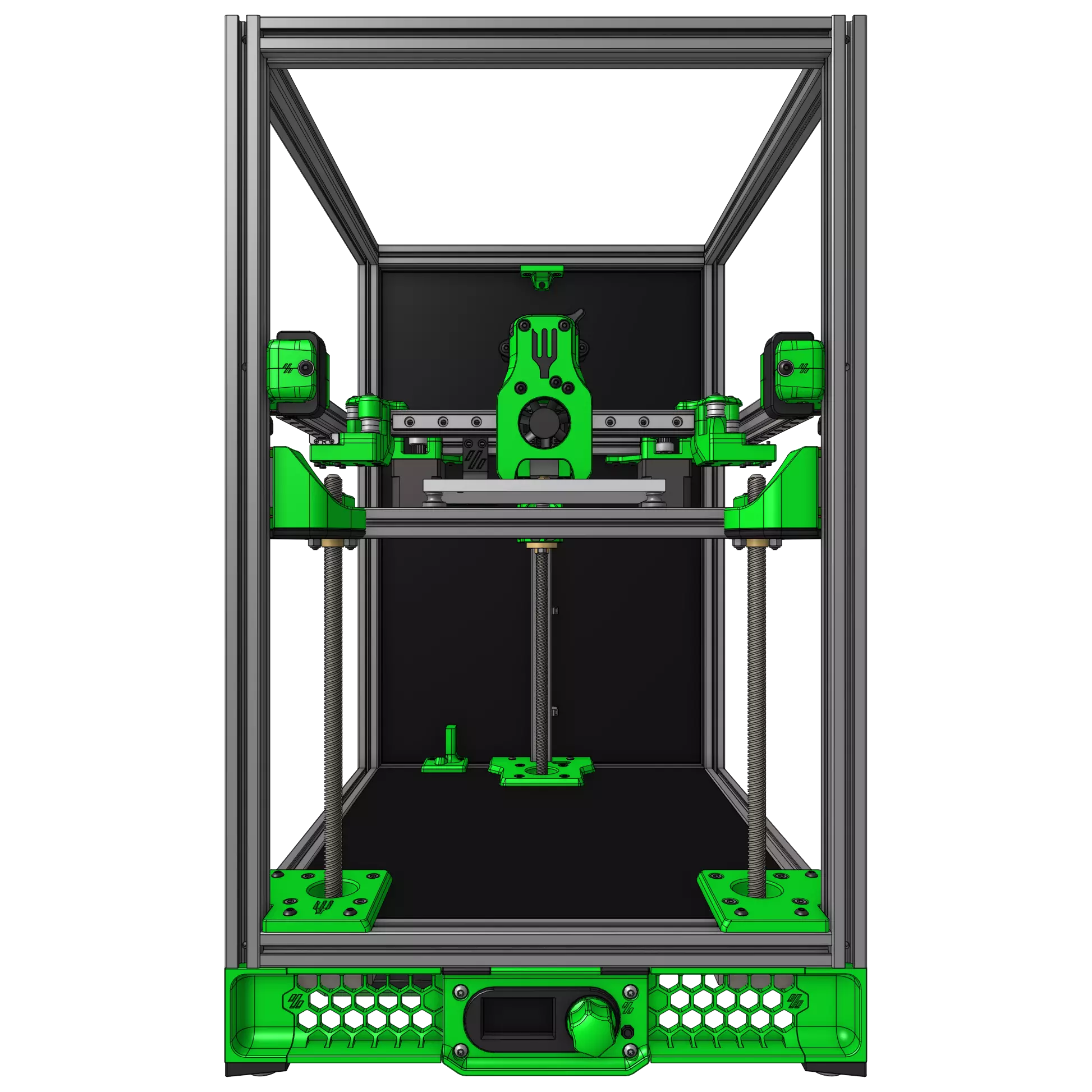

Salad Fork kit as seen at 3DPrinters for Ants

All parts are high quality, proven parts.

If you have been wanting to build a Salad Fork, look no further.

Here are all the parts you need, and a few left up to you.

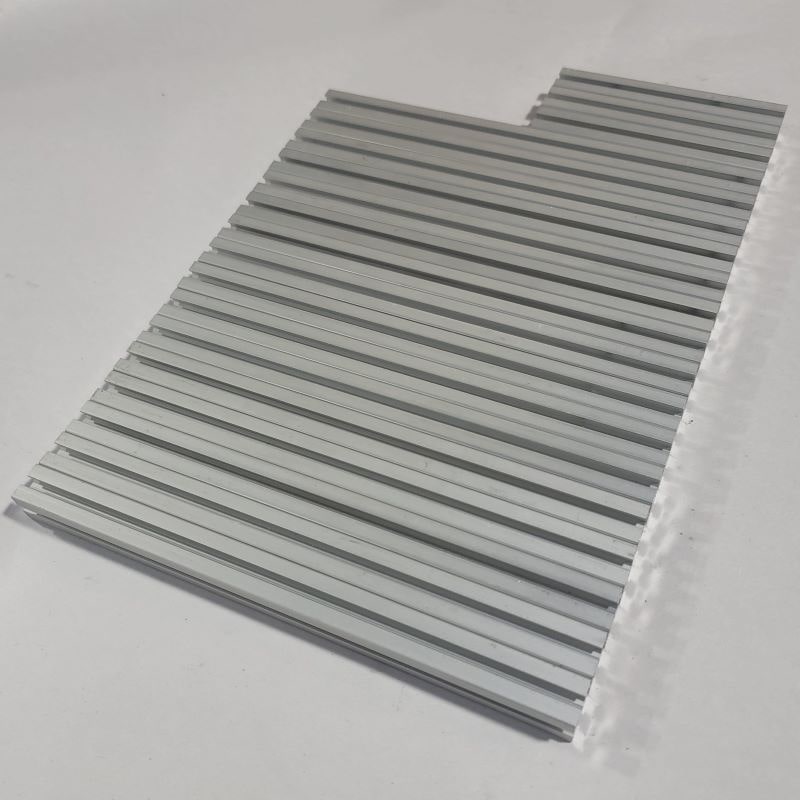

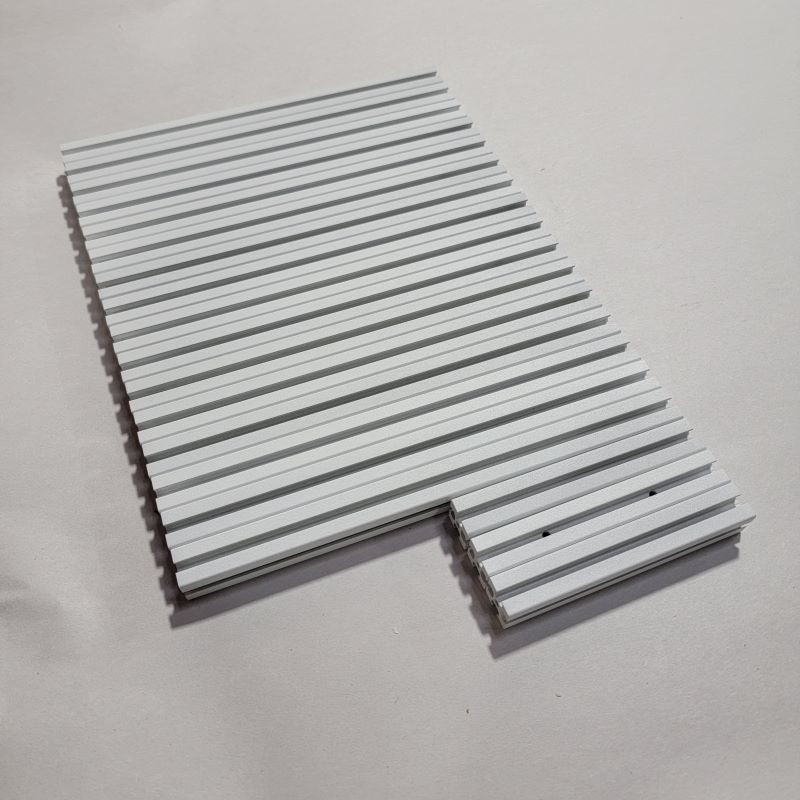

All colors are professionally powder coated. The slots may be light due to the powder not getting in them without too much build up of powder.

All rails come with nutbars standard, so no need for them either :)

Hardware/FastEners

Motion Parts

Quanity	Description
2	NEMA14 stepper
3	NEMA17 integrated-leadscrew stepper with Anti-backlash nut
1	NEMA 14 Pancake with 10 tooth spur gear
1	MGN9C 210 (for 150mm³)
2	MGN7H 230 (for 150mm³)
3	MGN7H 200 (for 150mm³)
4	GT2 6mm open belt
2	GT2 20T Pulley (6mm wide) (5mm bore)
24	F623-RS flanged bearings
3	GE5C spherical bearings

Frame

Panels

Quanity	Description
1	Back - (choose Material and color)
1	Deck - (choose Material and color)
2	Sides - Cast clear acrylic
1	Door - Cast clear acrylic
1	Top - Cast clear acrylic

Miscellaneous

Quanity	Description
1	The Duet 3 Mini 5+ WiFi
1	The Duet 3 Expansion Mini 2+
4	D2F switch
1	5mm x 25mm pin
4	Rubber foot
50	shims
2	3010 blower fans 24V with bearings NOT sleeve bushings
1	3007 axial fan 5V
1	7mm x 7mm cable chain 12 links plus ends
1	Thermal Fuse 125C
1	AC Inlet
1	BMG Gear set
1 each	Torx wrenchess T6,T8,T10
10	6mm dia x 3mm thick neodymium magnet
2	Din Rails (zinc plated 35mm x 7.5mm x 266mm)

Things you will still need to complete your Printer

Description
PEI + 3M 468P (200MP)
Spring Steel Flex Buildplate 160x160mm (OPTIONAL)
Magnetic sheet for spring steel plate 160x160 (OPTIONAL)
Printed Parts
2mmx100mm zip ties
Microfit3 Male & Female Plugs
24V Heater Cartridge (slim wires)
Hotend
Misc Wiring
